Sigma Post for W Beam Highway Guardrail
We supply sigma post and other accessories for W beam highway guardrails and road barriers. Sigma posts are manufactured from Q235B steel material with heavy zinc coating corrosion protection.
Sigma Posts, Hot Dipped Galvanized
1900x100x55x4mm
100*55*4.2*2000mm
Packing: 58 bundles a 30 pc posts, total 1740 posts per container
Sigma Posts and Accessories for W Beam Guardrails
| Product Name |
Size |
Material |
Surface |
|
MM |
HDG |
||
|
Sigma post |
100*55*4.2*2000 |
Q235B |
over 75um |
|
U spacer |
70*80*200*5 |
Q235B |
over 75um |
|
Fish Tail End |
|
Q235B |
over 75um |
|
Reflector |
|
|
|
|
Flat Plate Washer |
76*44*4 |
Q235B |
over 75um |
|
Guardrail Bolts gr8.8 |
M16*35(link Beam to Beam) |
1b+1n+1w |
over 75um |
|
Guardrail Bolts gr8.8 |
M16*50(link Beam to Spacer) |
1b+1n+1w |
over 75um |
Guard rails posts exported to Korea for Guard Rail Plates:

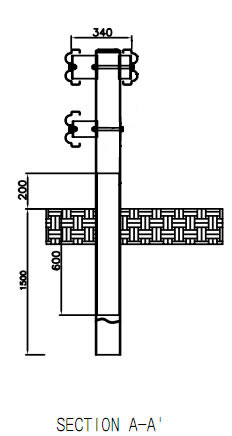

Guard rails post as per drawing
metal Guard Rail installed with Sigma Post, for South Korea
